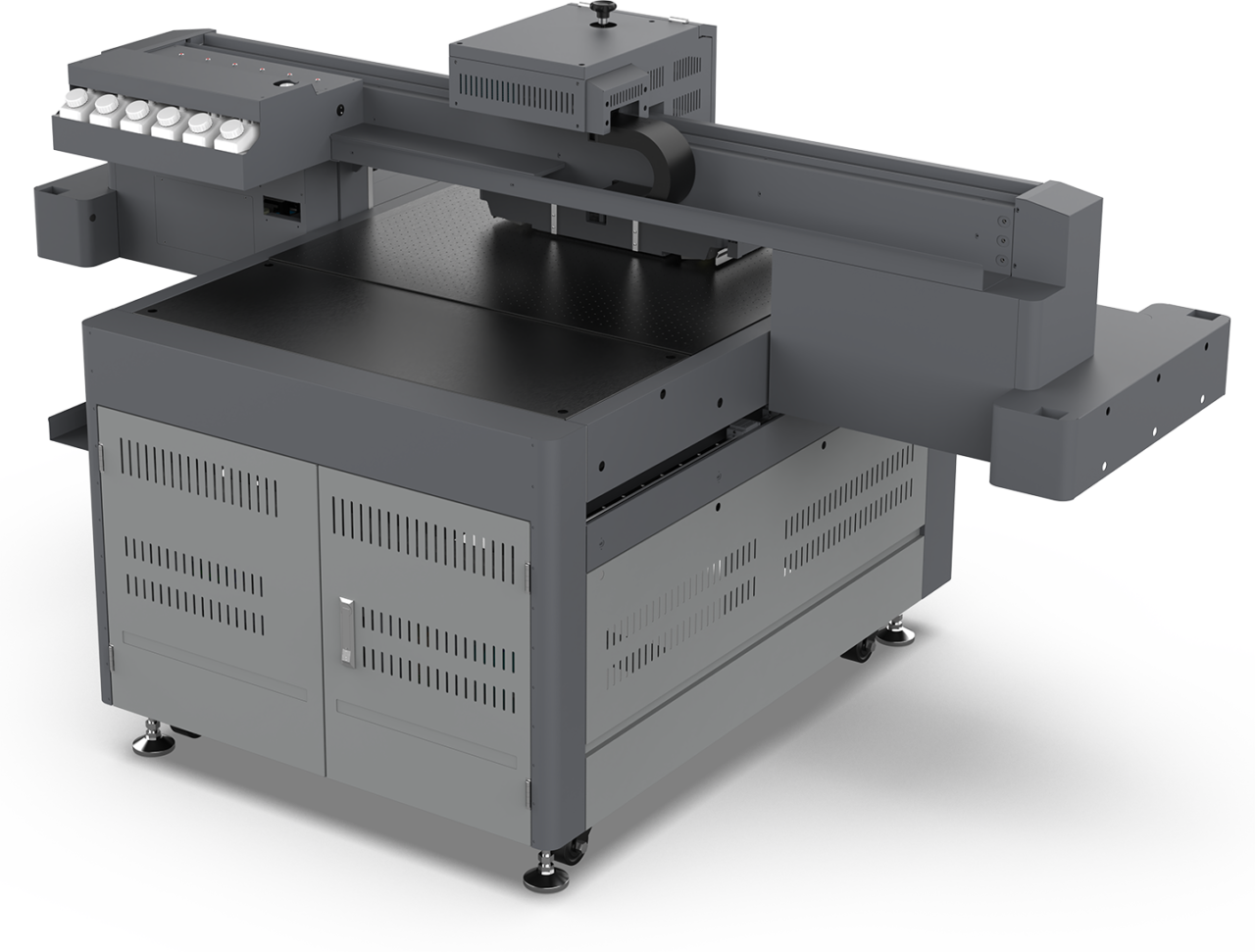

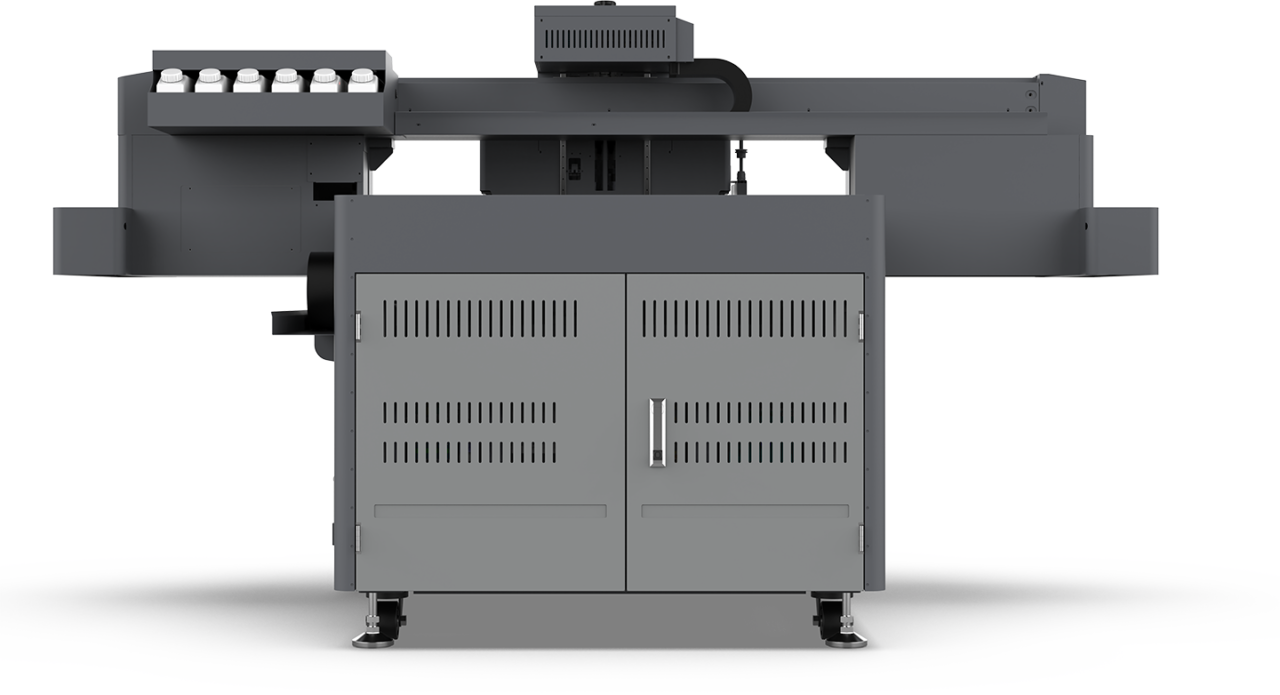

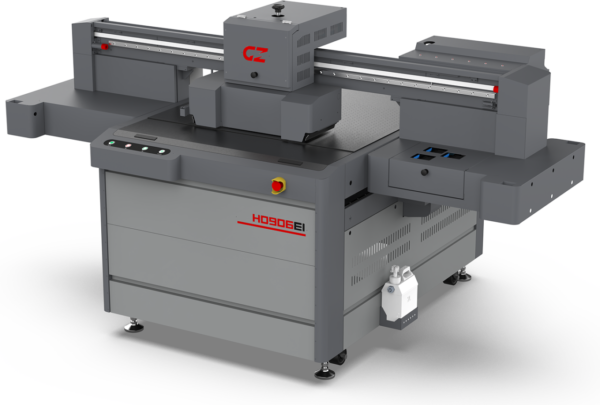

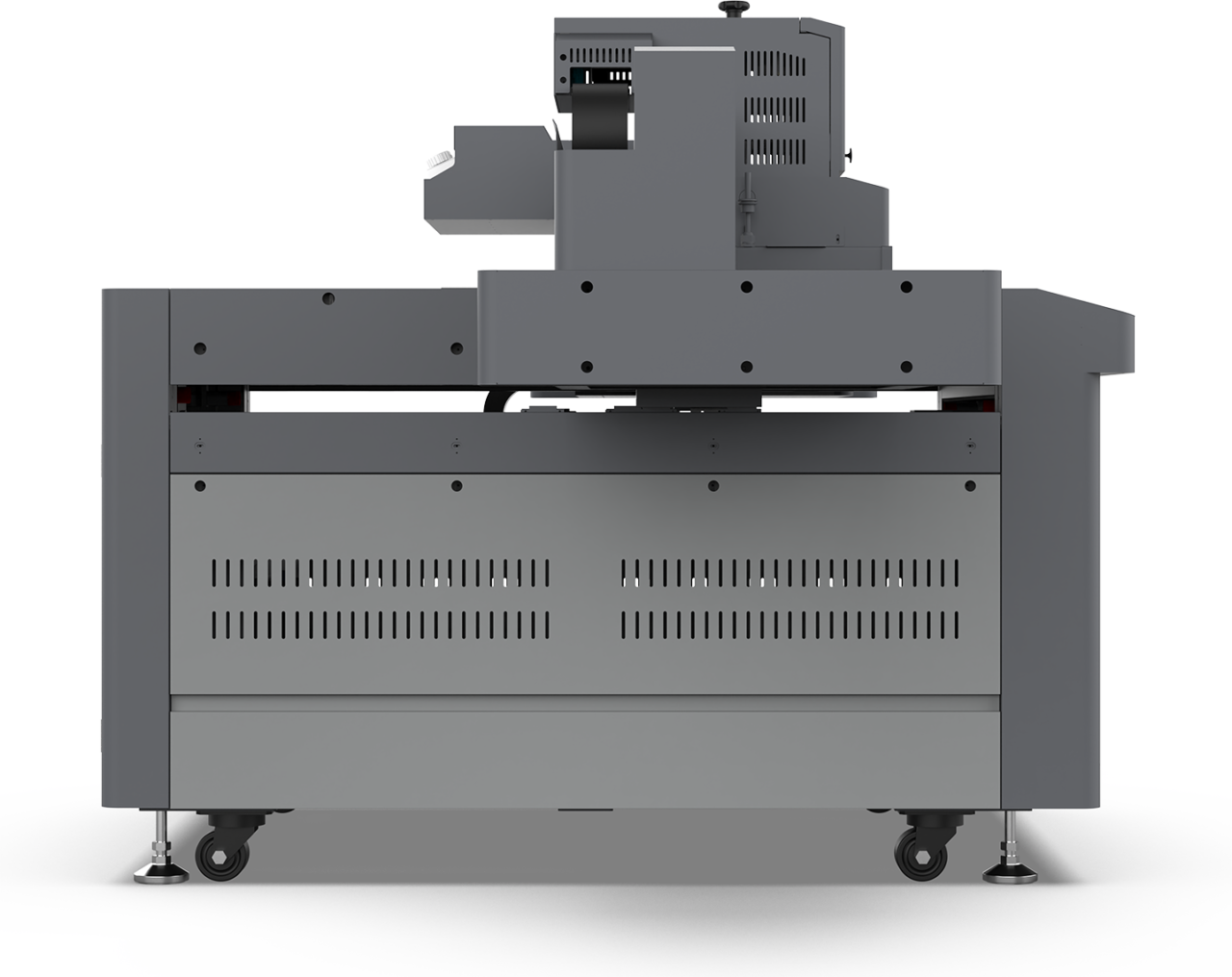

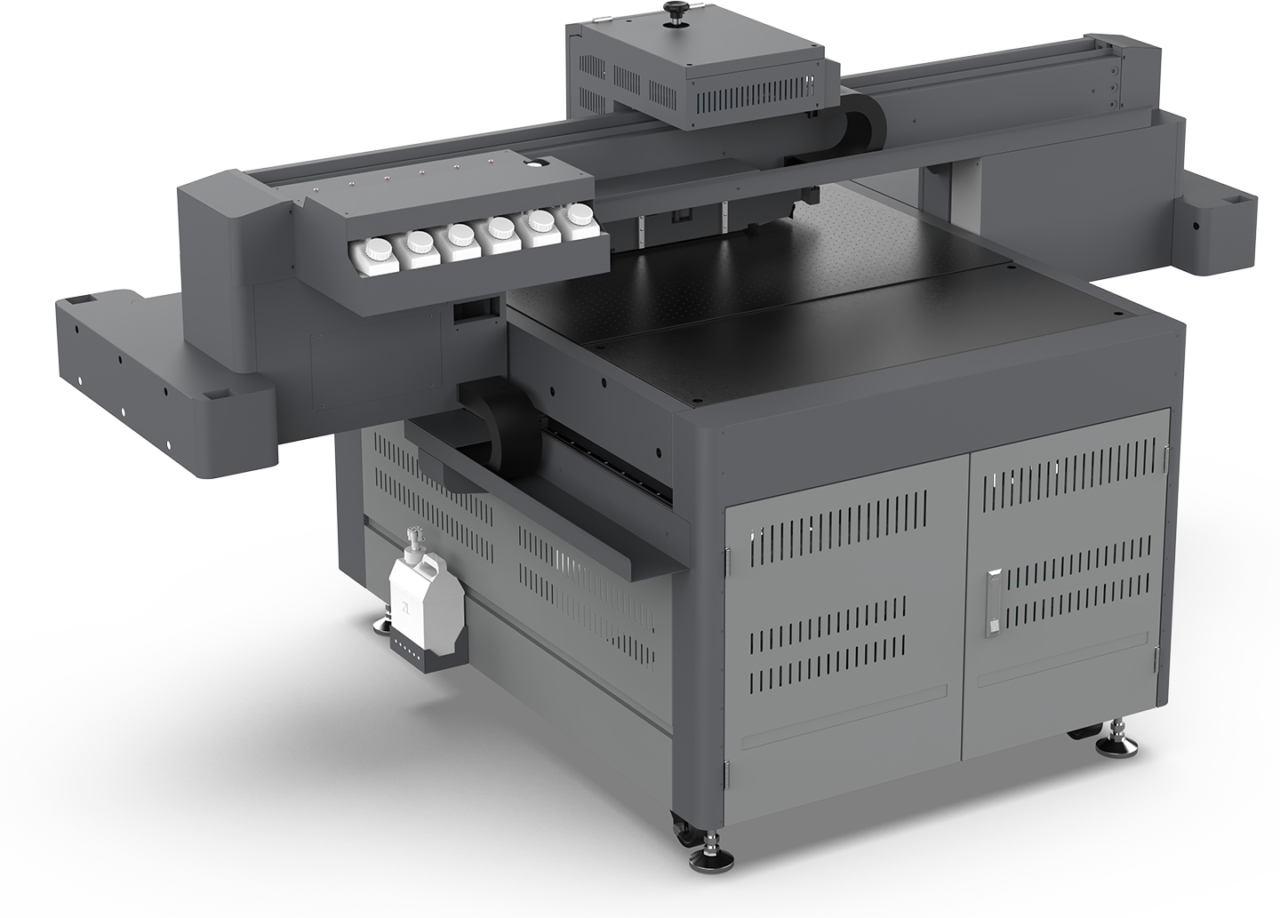

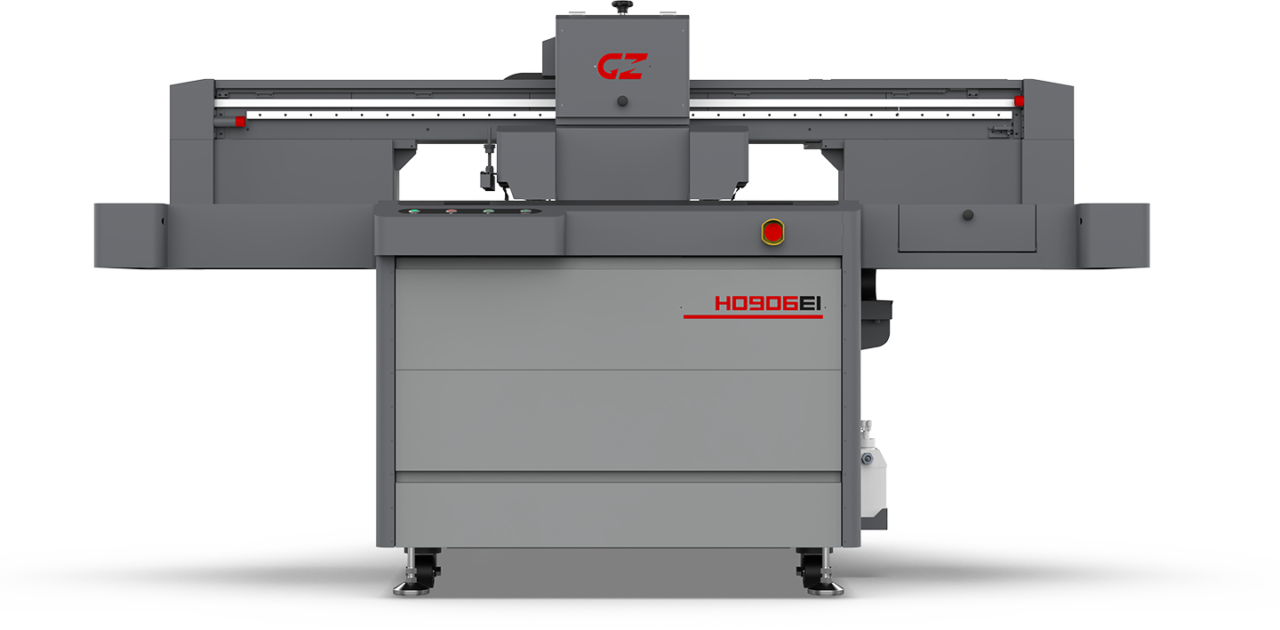

Gongzheng H0906EI – Compact High-Resolution UV Flatbed Printer
The Gongzheng H0906EI is a compact UV flatbed printer designed for high-quality printing on various substrates:
Printhead Configuration: Equipped with 2–3 Epson I3200 U1 printheads, delivering resolutions up to 720×1800 dpi.
Curing System: Features four water-cooled LED UV lamps for efficient curing.
Media Compatibility: Supports media up to 150mm thick, including materials like acrylic, aluminum, foam board, PVC, leather, glass, wood, and ceramic tiles.
Printing Size: Maximum print area of 900×600 mm.
Ink System: Utilizes UV curable inks with configurations of CMYK, CMYK+White, or CMYK+White+Varnish.
Ink Supply: Includes a bulk ink supply system with a 500ml tank and a white ink recirculation system.
Print Speed: Varies by mode and resolution; for example, in draft mode at 720×1200 dpi, it prints approximately 4.2 minutes per sheet with CMYK+White configuration.
Additional Features: Precise vacuum platen with 12 adjustable points, anti-collision unit to protect printheads, automatic media detector for up to 150mm thick media, and a constant temperature printhead heater.
Ideal for applications such as phone covers, notebooks, pens, and other personalized items
