Description

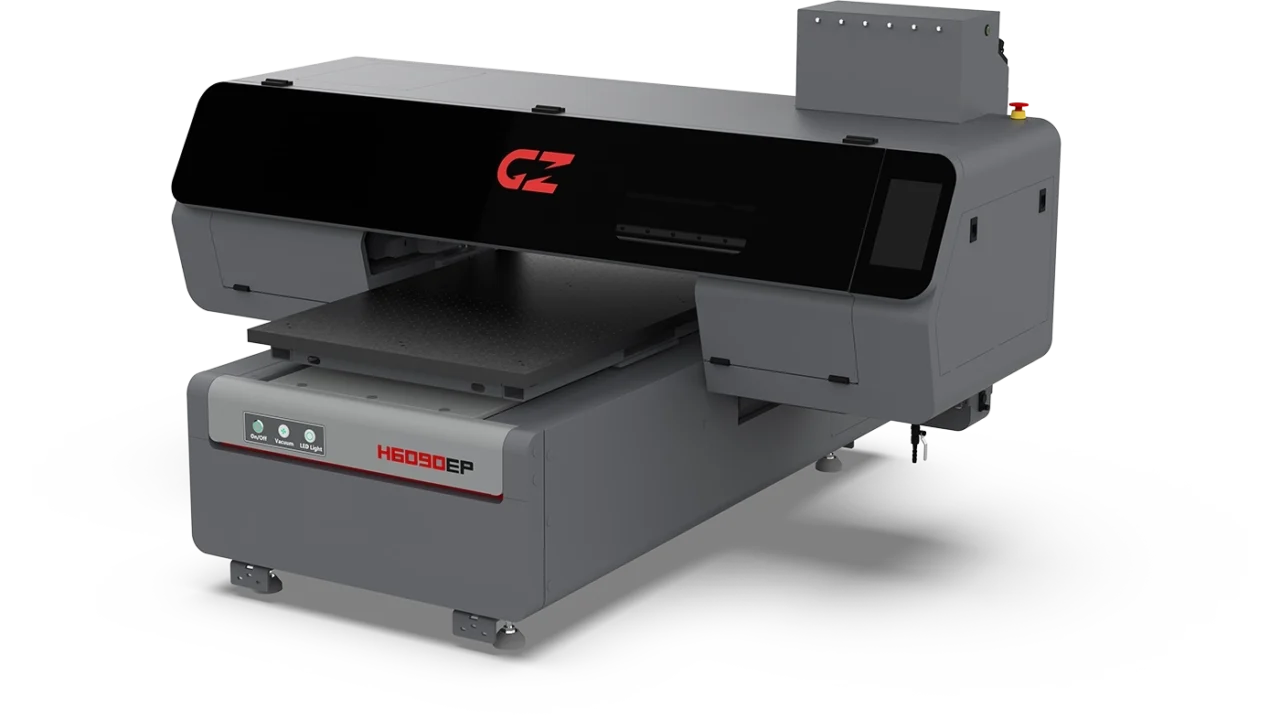

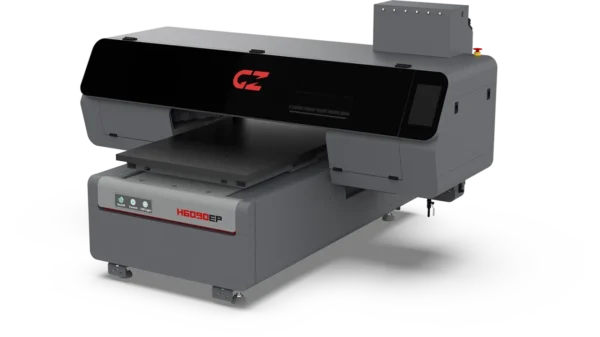

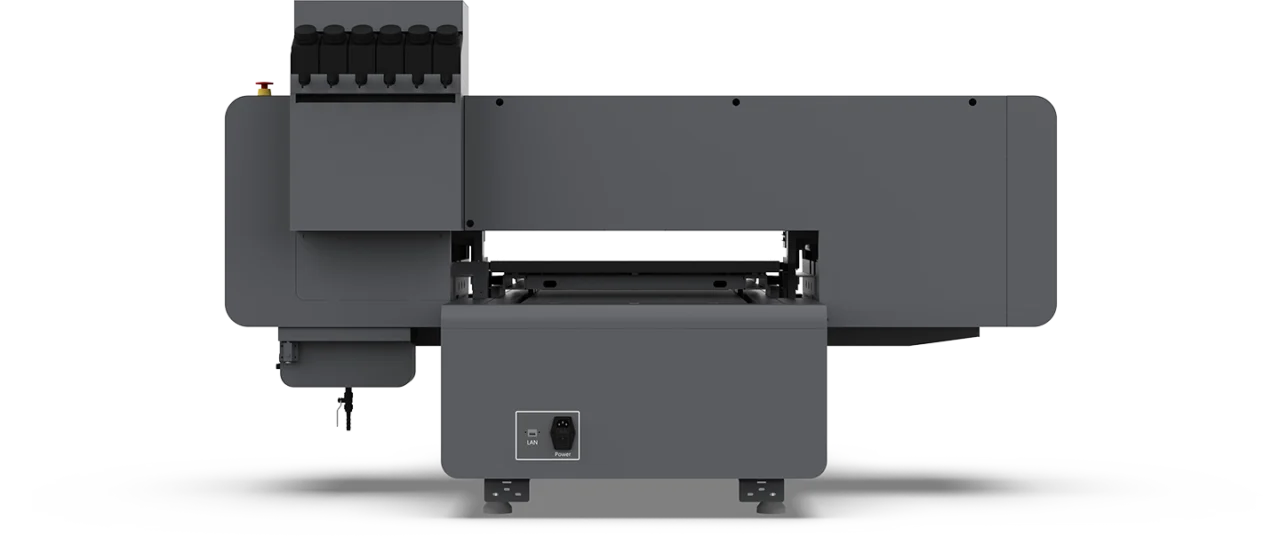

GZ H6090EI – Compact High-Resolution UV Flatbed Printer
The GZ H6090EI is a high-end small-format flatbed UV printer designed for high-quality printing on various substrates:
-
Printhead Configuration: Equipped with 2–3 Epson I3200 U1 printheads, delivering resolutions up to 720×1800 dpi.
-
Curing System: Features four water-cooled LED UV lamps for efficient curing.
-
Media Compatibility: Supports media up to 150mm thick, including materials like acrylic, aluminum sheet, foam board, PVC board, leather, glass bottle, wood, ceramic tile, and more.
-
Printing Size: Maximum print area of 900×600 mm.
-
Ink System: Utilizes UV curable inks with configurations of CMYK, CMYK+White, or CMYK+White+Varnish.
-
Ink Supply: Includes a bulk ink supply system with a 500ml tank and a white ink recirculation system.
-
Print Speed: Varies by mode and resolution; for example, in draft mode at 720×1200 dpi, it prints approximately 4.2 minutes per sheet with CMYK+White configuration.
-
Additional Features: Equipped with a precise vacuum platen with 12 adjustable points, anti-collision unit to protect printheads, automatic media detector for up to 150mm thick media, and a constant temperature printhead heater.
